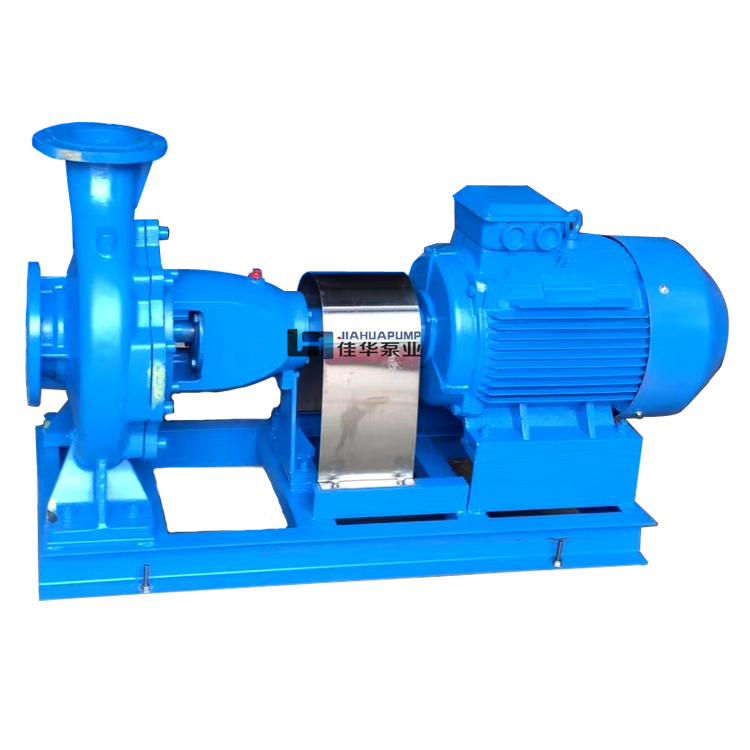

IR系列泵为悬臂式单级单吸热水离心泵，适用于各类建筑的采暖热水、空调系统及冶金、纺织、化工、印染等工业部门，可输送不含有体积超过0.1%和粒度小于0.2mm的固体杂质，温度低于150℃，进口压力不大于0.4MPa的中性热水。轴封一般为机械密封，也可以为填料密封。
IR系列泵为单级单吸热水离心泵，适用于各类建筑的采暖热水、空调系统及冶金、纺织、化工、印染等工业部门，可输送不含有体积超过0.1%和粒度小于0.2mm的固体杂质，温度低于150℃，进口压力不大于0.4MPa的中性热水。轴封一般为机械密封，也可以为填料密封。
IR型系列泵性能范围（按设计点）
转速：2900r/min和1450r/min
进口直径：50-200mm
流量：6.3-400m3/h
扬程：5-125m
型号意义
IR80-65J-160I(A、B、C)
IR：单级单吸热水离心泵
80：进水口直径（mm）
65：出水口直径（mm）
J：降速使用
160：叶轮名义直径（mm）
I：泵与电机通过爪式联轴器连接
(A、B、C)：叶轮第一、第二、第三次切割
温馨提醒：为了节约您查看时长，该页面只放置部分参数表，如有需要您可以直接联系客服咨询、选型及报价！
型号 | 流量 | 扬程 | 转 速 n r／min | 效率 η （%） | 轴功率 N IS | 配 用 电 机 | 必需汽蚀余量 （NPSH）r （m） | 泵口径 | 泵重 (kg) | ||
m3／h | m | 电机 型号 | 功率 IS | 进口 mm | 出口 mm | ||||||
IS 100-80-160 IR | 60 100 120 | 36 32 28 | 2900 | 70 78 75 | 8.42 11.2 12.2 | Y160M2-2/15 | 3.5 4.0 5.0 | 100 | 80 | 79 | |
IS 100-80-160 IR | 30 50 60 | 9.2 8 6.8 | 1450 | 67 75 71 | 1.12 1.46 1.57 | Y100L1-4/2.2 | 2.0 2.5 3.5 | 100 | 80 | 79 | |
IS 100-80-160A IR | 27 45 54 | 7.5 6.5 5.5 | 1450 | 66 74 70 | 0.83 1.07 1.16 | Y90L-4/1.5 | 2.0 2.5 3.0 | 100 | 80 | 79 | |
IS 100-65-200 IR | 60 100 120 | 54 50 47 | 2900 | 65 76 77 | 13.6 17.9 19.9 | Y180M-2/22 | 3.0 3.6 4.8 | 100 | 65 | 86 | |
IS 100-65-200 IR | 30 50 60 | 13.5 12.5 11.8 | 1450 | 73 73 74 | 2.33 2.33 2.61 | Y112M-4/4 | 2.0 2.0 2.5 | 100 | 65 | 86 | |
IS 100-65-200A IR | 57 95 114 | 48.7 45.1 42.4 | 2900 | 64 75 76 | 11.84 15.55 17.28 | Y160L-2/18.5 | 3.0 3.6 4.8 | 100 | 65 | 86 | |
IS 100-65-200A IR | 28.5 47.5 57 | 12.2 11.3 10.7 | 1450 | 59 62 73 | 1.16 2.03 2.27 | Y100L2-4/3 | 2.0 2.0 2.5 | 100 | 65 | 86 | |
IS 100-65-200B IR | 51 85 102 | 39.0 36.1 34 | 2900 | 63 74 75 | 8.62 11.29 12.55 | Y160M2-2/15 | 2.0 2.0 2.5 | 100 | 65 | 86 | |
IS 100-65-250 IR | 60 100 120 | 87 80 74.5 | 2900 | 61 72 73 | 23.4 30.3 33.3 | Y200L2-2/37 | 3.5 3.8 4.8 | 100 | 65 | 95 | |
IS 100-65-250 IR | 30 50 60 | 21.3 20 19 | 1450 | 55 68 70 | 3.16 4.00 4.44 | Y132S-4/5.5 | 2.0 2.0 2.5 | 100 | 65 | 95 | |
IS 100-65-250A IR | 51 85 102 | 62.9 57.8 53.8 | 2900 | 60 71 72 | 14.59 18.87 20.73 | Y180M-2/22 | 3.5 3.8 4.8 | 100 | 65 | 95 | |
IS 100-65-250A IR | 25.5 42.5 51 | 15.4 14.5 13.7 | 1450 | 54 67 69 | 1.98 2.50 2.77 | Y112M-4/4 | 2.0 2.0 2.5 | 100 | 65 | 95 | |
IS 100-65-250B IR | 24 40 48 | 13.6 12.8 12.2 | 1450 | 53 66 68 | 1.68 2.11 2.34 | Y100L2-4/3 | 2.0 2.0 2.5 | 100 | 65 | 95 | |
IS 100-65-315 IR | 60 100 120 | 133 125 118 | 2900 | 55 66 67 | 39.6 51.6 57.5 | Y280S-2/75 | 3.0 3.6 4.2 | 100 | 65 | 130 | |
IS 100-65-315 IR | 30 50 60 | 34 32 30 | 1450 | 51 63 64 | 4.44 6.92 7.67 | Y160M-4/11 | 2.0 2.0 2.5 | 100 | 65 | 130 | |
IS 100-65-315A IR | 57 95 114 | 120 112.8 106.5 | 2900 | 54 65 66 | 34.58 44.92 50.06 | Y250M-2/55 | 3.0 3.6 4.2 | 100 | 65 | 130 | |
IS 100-65-315A IR | 28.5 47.5 57 | 30.7 28.9 27.1 | 1450 | 50 62 63 | 4.75 6.03 6.68 | Y132M-4/7.5 | 2.0 2.0 2.5 | 100 | 65 | 130 | |
IS 100-65-315B IR | 51 85 102 | 96.1 90.3 85.3 | 2900 | 53 64 65 | 25.24 32.68 36.40 | Y225M-2/45 | 3.0 3.6 4.2 | 100 | 65 | 130 | |
IS 100-65-315B IR | 25.5 42.5 51 | 24.6 23.1 21.7 | 1450 | 49 61 62 | 3.48 4.39 4.87 | Y132S-4/5.5 | 2.0 2.0 2.5 | 100 | 65 | 130 | |
IS 100-65-315C IR | 48 80 96 | 85.1 80.0 75.5 | 2900 | 53 65 65 | 21.05 27.25 30.35 | Y200L2-2/37 | 3.0 3.6 4.2 | 100 | 65 | 130 | |
IS 125-100-200 IR | 120 200 240 | 57.5 50 44.5 | 2900 | 67 81 80 | 28 33.6 36.4 | Y225M-2/45 | 4.5 4.5 5.0 | 125 | 100 | 87 | |
型号 | 流量 | 扬程 | 转 速 n r／min | 效率 η （%） | 轴功率 N IS | 配 用 电 机 | 必需汽蚀余量 （NPSH）r （m） | 泵口径 | 泵重 (kg) | ||
m3／h | m | 电机 型号 | 功率 IS | 进口 mm | 出口 mm | ||||||
IS 125-100-200 IR | 60 100 120 | 14.5 12.5 11.0 | 1450 | 62 76 75 | 3.83 4.48 4.80 | Y132M-4/7.5 | 2.5 2.5 3.0 | 125 | 100 | 87 | |
IS 125-100-200A IR | 114 190 228 | 51.9 45.1 40.2 | 2900 | 66 80 79 | 24.43 29.19 31.61 | Y200L2-2/37 | 4.5 4.5 5.0 | 125 | 100 | 87 | |
IS 125-100-200A IR | 57 95 114 | 13.0 11.3 10 | 1450 | 61 75 74 | 3.31 3.90 4.20 | Y132S-4/5.5 | 2.5 2.5 3.0 | 125 | 100 | 87 | |
IS 125-100-200B IR | 96 160 192 | 36.8 32 28.5 | 2900 | 65 79 78 | 14.8 17.66 19.12 | Y180M-2/22 | 4.5 4.5 5.0 | 125 | 100 | 87 | |
IS 125-100-200B IR | 48 80 96 | 9.3 8 7.0 | 1450 | 60 74 73 | 2.03 2.36 2.51 | Y112M-4/4 | 2.5 2.5 3.0 | 125 | 100 | 87 | |
IS 125-100-250 IR | 120 200 240 | 87 80 72 | 2900 | 66 78 75 | 43.1 55.9 62.8 | Y280S-2/75 | 3.8 4.2 5.0 | 125 | 100 | 115 | |
IS 125-100-250 IR | 60 100 120 | 21.5 20 18.5 | 1450 | 63 76 77 | 5.58 7.17 7.86 | Y160M-4/11 | 2.5 2.5 3.0 | 125 | 100 | 115 | |
IS 125-100-250A IR | 108 180 216 | 70.5 64.8 58.3 | 2900 | 65 77 74 | 31.9 41.28 46.37 | Y250M-2/55 | 3.8 4.2 5.0 | 125 | 100 | 115 | |
IS 125-100-250A IR | 54 90 108 | 17.4 16.2 15 | 1450 | 62 75 76 | 4.13 5.3 5.81 | Y132M-4/7.5 | 2.5 2.5 3.0 | 125 | 100 | 115 | |
IS 125-100-250B IR | 102 170 204 | 62.7 57.8 52.0 | 2900 | 64 76 73 | 27.24 35.23 39.63 | Y225M-2/45 | 3.8 4.2 5.0 | 125 | 100 | 115 | |
IS 125-100-250B IR | 51 85 102 | 15.5 14.5 13.4 | 1450 | 61 74 65 | 3.54 4.52 4.94 | Y132S-4/5.5 | 2.5 2.5 3.0 | 125 | 100 | 115 | |
IS 125-100-250C IR | 96 160 192 | 55.7 51.2 48.1 | 2900 | 64 76 73 | 22.71 29.37 33.03 | Y200L2-2/37 | 3.8 4.2 5.0 | 125 | 100 | 115 | |
IS 125-100-315 IR | 120 200 240 | 132.5 125 120 | 2900 | 60 75 77 | 72.1 90.8 101.9 | Y315S-2/110 | 4.0 4.5 5.0 | 125 | 100 | 125 | |
IS 125-100-315 IR | 60 100 120 | 33.5 32 30.5 | 1450 | 58 73 74 | 9.4 11.9 13.5 | Y160L-4/15 | 2.5 2.5 3.0 | 125 | 100 | 125 | |
IS 125-100-315A IR | 108 180 216 | 107.2 101.3 97.2 | 2900 | 59 74 76 | 53.47 67.15 75.28 | Y280M-2/90 | 4.0 4.5 5.0 | 125 | 100 | 125 | |
IS 125-100-315A IR | 54 90 108 | 27.1 25.9 24.7 | 1450 | 57 72 73 | 7.0 8.82 9.96 | Y160M-4/11 | 2.5 2.5 3.0 | 125 | 100 | 125 | |
IS 125-100-315B IR | 102 170 204 | 95.7 90.3 86.7 | 2900 | 58 73 75 | 45.86 57.30 64.27 | Y280S-2/75 | 4.0 4.5 5.0 | 125 | 100 | 125 | |
IS 125-100-400 IR | 60 100 120 | 52 50 48.5 | 1450 | 53 65 67 | 16.1 21 23.6 | Y200L-4/30 | 2.5 2.5 3.0 | 125 | 100 | 137 | |
IS 125-100-400A IR | 54 90 108 | 42.1 40.5 39.3 | 1450 | 52 64 66 | 11.94 15.52 17.49 | Y180L-4/22 | 2.5 2.5 3.0 | 125 | 100 | 137 | |
IS 125-100-400B IR | 51 85 102 | 37.6 36.1 35.0 | 1450 | 51 63 65 | 10.29 13.29 14.96 | Y180M-4/18.5 | 2.5 2.5 3.0 | 125 | 100 | 137 | |
IS 125-100-400C IR | 48 80 96 | 33.3 32.0 31.0 | 1450 | 51 63 65 | 8.56 11.09 12.45 | Y160L-4/15 | 2.5 2.5 3.0 | 125 | 100 | 137 | |
注：订货时，请务必注明介质温度
